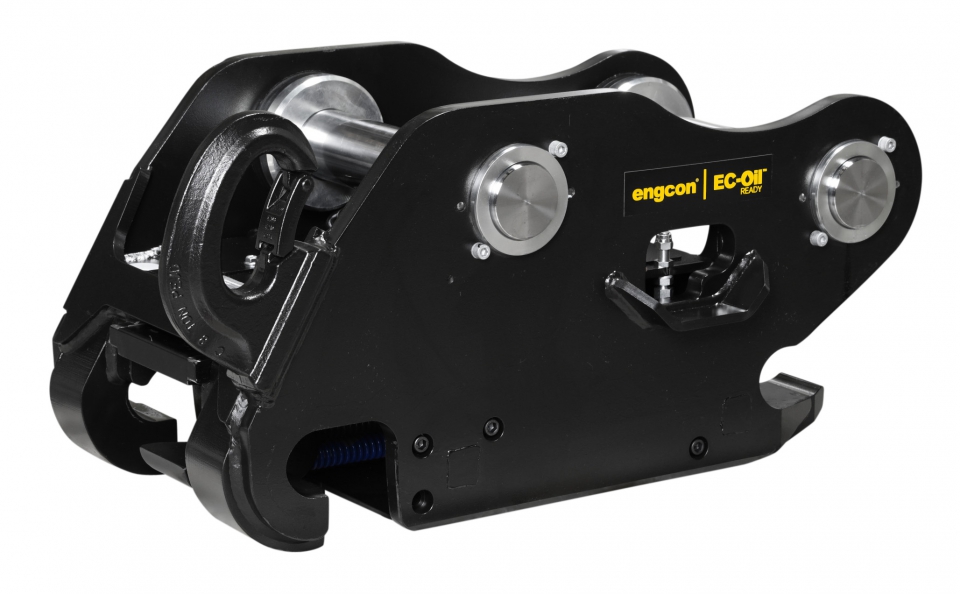

Connect and disconnect your tiltrotator or other hydraulic tools without having to leave the cab. Comfort, safety and profitability – standard engcon features. All purchases of engcon’s machine hitches, tiltrotators and control systems include EC-Oil, engcon’s fully automatic quick hitch system.

Hydraulic locking with fourfold safety:
1. Electronic sensors detect when both pins have contact
2. A check valve prevents the hydraulic cylinder from opening even if a hose ruptures or a pressure drop should occur
3. Powerful exterior springs keep the coupler locked even if the electronics and hydraulics fail
4. Unique lock bolt design provides additional safety. Because the bucket axle abuts the hitch side plates, it cannot drop out of position even if all three of the preceding steps should fail.
Front and rear locks minimises the risk of accidents caused by swinging tools and attachments
The machine hitch is supplied as standard with external audible and visible warning signals to alert the surrounding area
Quick hitch with all 4 hooks facing the direction of excavation doubles the contact surfaces. This means digging forces are distributed evenly across the hitch, minimising the risk of play between the machine hitch and the tool
The standardised control panel simplifies control of both the machine hitch and tiltrotator hitch, which minimises the risk of incorrect operation
With the ground pressure function*, the tool can only be removed when it exerts a given pressure on the ground. This minimises the risk of dropped buckets
Welded high-strength steel
Fits all excavators in the specified weight class independent of control system
The hook is safety classified in compliance with EN ISO 12100-1/A1:2009 and EN ISO 12100-2/A1:2009
This hitch type is also fitted as standard equipment under engcon tiltrotators with hitch sizes S40-S80
Technical specifications

S40 S45 S50 S60 S70 S80
Axle diameter A [inches]: 1.6 1.8 2 2.4 2.8 3.1
Width B [inches]: 7.9 11.4 10.6 13.4 17.7 23.2
Length C [inches]: 11.8 16.9 16.9 18.9 23.6 26.4
Build height D [inches]: 5.3 5.5 5.5 6.7 7.5 10.6
Weight [lbs]: 110 220 220 397 639 816
Max hydraulic pressure [psi]: 5,080 5,080 5,080 5,080 5,080 5,080
Recommended hydraulic pressure open/close [psi]: 3,050-3,630 3,050-3,630 3,050-3,630 3,050-3,630 3,050-3,630 3,050-3,630
Base machine weight [lbs]: 4,400-13,200 13,230-24,250 13,230-24,250 26,460-41,890 44,090-66,140 59,530-88,190

S40 S45 S50 S60 S70 S80
Axle diameter A [mm]: 40 45 50 60 70 80
Width B [mm]: 200 290 290 340 450 590
Length C [mm]: 300 430 430 480 600 670
Build height D [mm]: 135 140 140 170 190 270
Weight [kg]: 50 100 100 180 290 370
Max hydraulic pressure [MPa]: 35 35 35 35 35 35
Recommended hydraulic pressure open/close [MPa]: 21-25 21-25 21-25 21-25 21-25 21-25
Base machine weight [t]:
