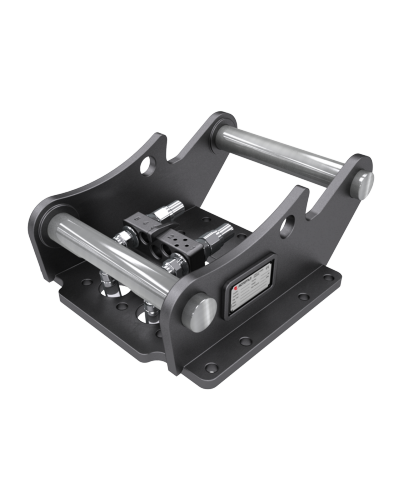

Tool attachment frames

The tool attachment frame constitutes the connection between your tool and the excavator’s machine coupler or tiltrotator. Rototilt’s tool attachment frames are based on Open-S. With our standard attachment frame, the hydraulics are connected manually when changing tools, although the process is smooth thanks to our modern quick couplings. With Rototilt® QuickChange™, you can change hydraulic tools without leaving the cab.For service tools, we have developed AFT ST, a weld constructed attachment frame with a low weight and bolted coupling ramp, optimized for Rototilt’s tools requiring a bolt-on attachment frame. For tools that require even greater breakout force, we have also developed AFT HD, which has a cast, heavy duty construction. AFT HD is optimized for use with hydraulic hammers for example and other heavy demolition tools, but has a flexible design to suit a wide variety of tools and manufacturers.

Name AFT QC60-5 HD AFT QC70 HD AFT QC80 HD
Attachment QC60-5 QC70 QC80
Machine weight, min-max
Weight, from 341.72 l 542.34 l 745.16 l
Max number of couplings 5 5 6
Standard S S S
Shaft diameter 2.36 in 2.76 in 3.15 in
