Performance testing for all units.
Excavator-friendly.

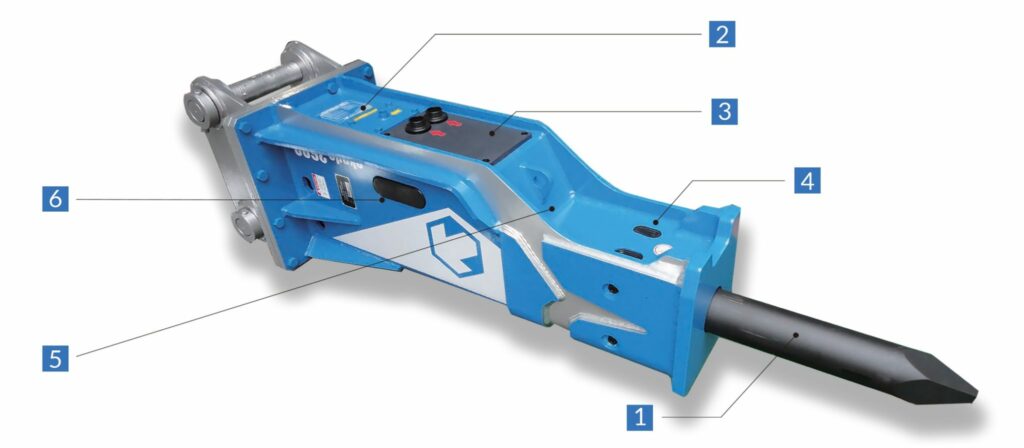

1
Working tool:
Selected special high quality steel and the most advanced heat treatment available anywhere ensure outstanding wear and shock resistance.
2
Valve:
State-of the art machining and design provide the highest standard of reliability available anywhere for this critical assembly.
3
Accumulator:
Creates additional impact power and releases stress on the hydraulic pump.
4
Oval chisel pin:
The strong oval shape allows turning over right, left, up and down, distributing wear evenly and extending service life.
5
Shank bushing:
Extended length provides a larger bearing surface and minimizes wear.
6
Piston:
Increased weight and long stroke design produce superior impact energy.
Specifications
okada series Small Range
Unit okada150 okada200 okada250 okada400 okada650 okada800 okada900
Working Pressure [Mpa] 6~13 9~12 9~12 9~12 11~16 12~17 14~17
Required Oil flow forBreaker [L/min] 12~25 12~25 15~30 23~70 30~65 35~75 45~100
Frequency [bpm] 930~1300 800~1400 550~1000 600~1500 600~1100 400~920 400~1100
Operating Weight [kg] 76 94 138 187 328 393 495
Overall Length [mm] 970 1070 1135 1450 1513 1609 1894
Working Steel Dia. [mm] 40 40 45 57 70 75 80
Suitable Carrier Machine [Ton] 0.7~1.5 1.0~2.0 1.2~2.5 1.5~4 3~6.5 4.5~8 4.5~9
Carrier Output Flow Range [lpm] 12~30 13~40 15~42 30~70 35~70 40~110 56~120
okada series Midium Range
Unit okada1000 okada1300 okada1500 okada2600
Working Pressure [Mpa] 14~17 14~19 14~19 14~19
Required Oil flow forBreaker [L/min] 50~110 75~120 65~100 120~175
Frequency [bpm] 350~1000 350-900 400~900 350~800
Operating Weight [kg] 577 830 1043 1650
Overall Length [mm] 2062 2125 2338 2679
Working Steel Dia. [mm] 90 95 105 135
Suitable Carrier Machine [Ton] 6~10 8~13 9~15 18~26
Carrier Output Flow Range [lpm] 70~135 70~140 80~140 140~210
okada series Heavy range
Unit okada3600 okada4200 okada6000 TOP800
Working Pressure [Mpa] 14~19 15~19 15~19 15~18
Required Oil flow forBreaker [L/min] 180~250 170~238 230~310 280~380
Frequency [bpm] 300~650 230~470 230~500 260~360
Operating Weight [kg] 2610 2900 3950 5600
Overall Length [mm] 3016 3209 3627 4420
Working Steel Dia. [mm] 150 155 169 189
Suitable Carrier Machine [Ton] 25~36 28~42 37~60 60~80
Carrier Output Flow Range [lpm] 208~290 270~400 280~350 280~382
