1300 Maxtrak

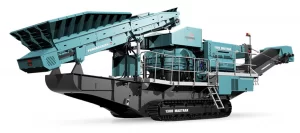

The Powerscreen® 1300 Maxtrak is a portable cone crushing plant which is ideally suited to secondary applications such as taking an all in feed from a primary crusher. Based around the 1300 Automax® cone crusher, the plant excels in the production of sub-base or aggregates, providing excellent cubicity, throughput and reduction ratios.
Features
-
Output Potential: 350 tph (386 US tph)
-
Renowned Automax® crusher technology
-
Accepts clean all in feed
-
Excellent product shape
-
High reduction ratio
-
Cone feed box level control to maintain choke feeding
-
Hydraulic crusher setting
-
Cone overload protection
-
Heavy duty chassis and track frame
-
Metal detector
-
Dust suppression system
-
Economical to operate with a highly fuel efficient direct drive system
-
Fitted with Powerscreen Pulse Telematics system
Specification
-
Weight (Est) (Tier 3) 48,020kgs (105,865lbs) (Tier 4) 47,880kgs (105,557lbs)
-
Transport width 3m (9’10”)
-
Transport length 15.35m (50’4″)
-
Transport height 3.85m (12’8″)
-
Working width 3.85m (12’8″)
-
Working length 15.5m (50’10”)
-
Working height 4.7m (15’5″)
