\n 1\n SCREENING DEBRIS:\n Soil, garbage and various objects.\n 2\n Light weight, heavy duty frame structure.\n 3\n Reduced noise & vibration.\n 4\n Unique built-in flow control valve provides smooth operation.\n 5\n Front support for heavy loads.\n Specifications\n TMB series TROMMEL SCREENING BUCKET\n Unit TMB-60 TMB-135 TMB-200 TMB-300\n Operating Weight [kg] 710 1430 2070 2800\n Overall Length [mm] 1820 2350 2580 3050\n Overall Height [mm] 1310 1670 1835 2010\n Overall Width [mm] 1050 1550 1680 1680\n Screen Diameter [mm] 815 1100 1200 1400\n Screen Length [mm] 950 1250 1400 1600\n Suitable Carrier Range [Ton] 6〜9 10〜16 20〜25 30〜40\n Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount."}" data-sheets-userformat="{"2":12673,"3":{"1":0},"10":2,"11":3,"15":"Calibri","16":8}">Seperates C&D debris out of soil and sand, gravel and aggregates out of soil, non-flammable material from ashes at incinerator, stones out of excavated material and more.

TMB-60

TMB-135

TMB-200

TMB-300

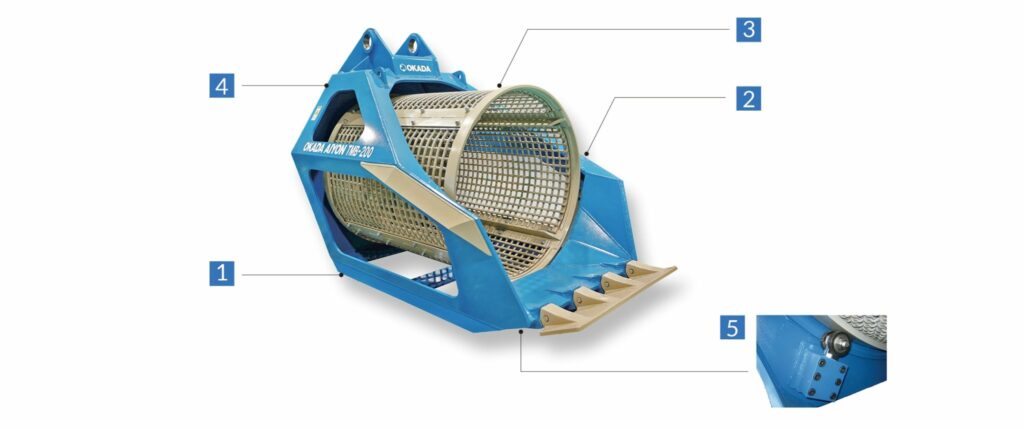

1
SCREENING DEBRIS:
Soil, garbage and various objects.
2
Light weight, heavy duty frame structure.
3
Reduced noise & vibration.
4
Unique built-in flow control valve provides smooth operation.
5
Front support for heavy loads.
Specifications
TMB series TROMMEL SCREENING BUCKET
Unit TMB-60 TMB-135 TMB-200 TMB-300
Operating Weight [kg] 710 1430 2070 2800
Overall Length [mm] 1820 2350 2580 3050
Overall Height [mm] 1310 1670 1835 2010
Overall Width [mm] 1050 1550 1680 1680
Screen Diameter [mm] 815 1100 1200 1400
Screen Length [mm] 950 1250 1400 1600
Suitable Carrier Range [Ton] 6〜9 10〜16 20〜25 30〜40
Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
