SOLID C

Combined spreader with 4 to 9m³ dry agent capacity and 2000 to 8500 L liquid agent capacity

The SOLID C spreader is specifically designed for combined spreading. In addition to dry and pre-wetted spreading, it also enables liquid spreading due to its construction that allows carrying additional liquid agent tanks. Spreader designs differ depending on the conveyor system for the dry agent (auger, chain or belt conveyor) in combination with liquid spreading.

The control unit and design of the SOLID C spreader enable spreading with dry material, spreading with pre-wetted material with different liquid ratios, liquid spreading via the spinner or liquid spreading using a ramp with nozzles. High precision and efficiency of spreading are enabled by the quality of construction of all spreader components. Unique surface protection guarantees a long lifespan of the device, and it is safe and simple to use.

KEY BENEFITS

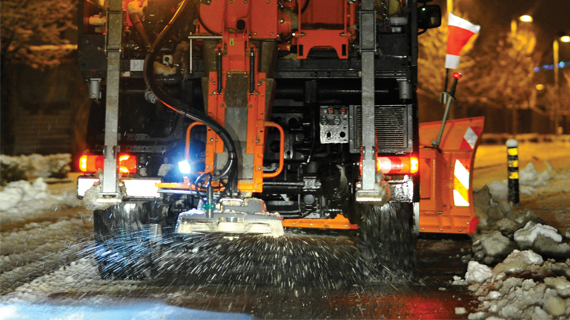

Precision

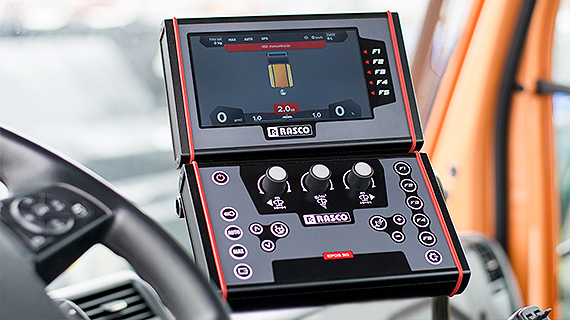

High precision and efficiency of spreading are enabled by the quality of construction of all spreader components and the EPOS control unit which enables the control of all spreading parameters directly from the vehicle cabin.

Durability

Combination of three systems of surface protection secures a long lifespan of the spreader even in the most difficult working conditions.

Simplicity of use

Includes the use of legs for quick mounting and demounting and a frame which can be adjusted for various mounting methods.

5 CONVEYOR SYSTEMS OF THE SPREADING AGENT

The SOLID C spreader can be equipped with one of the five conveyor systems for materials for dry spreading. The choice of a conveyor system depends on the material used for dry spreading and your preferences.

SOLID CLLB

Unique solution which combines the best characteristics of every known conveyor system. The main advantage of this system is the prevention of falling out of the spreading material into the box or on the vehicle chassis, providing simultaneous robustness and reliability of the steel chain conveyor system. This conveyor system ensures uniform discharging of the spreader and continuous fragmentation of the material for dry spreading before it is delivered to the distribution system.

SOLID CL

Specially designed for work with the most demanding materials for dry spreading, such as wet and adhesive sand with a high percentage of clay, coarse sea salt or a mixture of different materials.  High reliability and efficiency of the spreader is guaranteed by a strong chain conveyor which prevents the formation of a tunnel effect, regardless of the quality of spreading agents.

SOLID CX

The best choice for spreading with materials such as fine salt with a low moisture content or stone granules. Precision and efficiency of work with SOLID X is enabled by an auger conveyor system. The auger conveyor has a built-in fragmentation mechanism which prevents the passage of larger lumps of material for dry spreading onto the spinner.

SOLID CT

Intended for spreading with dry materials with low or moderate humidity. Reliability of spreading with more demanding materials using the SOLID T spreader is guaranteed by a rubber belt conveyor used for supplying the material. The shape of the belt conveyor prevents adhesion of the material, and a part of the conveyor system is also equipped with a fragmentation system for the spreading material.

SOLID CXX

SOLID CXX uses two auger conveyors as the transportation element. Therefore, SOLID XX can be used as a spreader for one or two materials for dry spreading. If the spreader carries two materials for dry spreading, the hopper is divided into two sections.

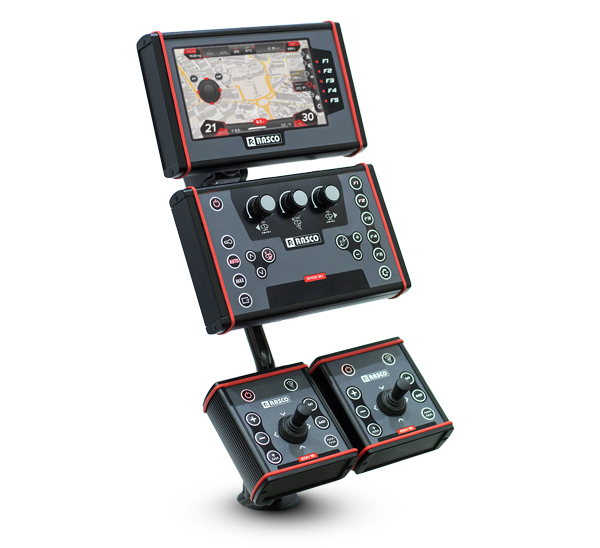

SIMPLE CONTROL AND HIGH SPREADING PRECISION

The work of all RASCO spreaders is controlled by EPOS control units. Their dedicated development by RASCO experts in cooperation with the users makes EPOS control units a leading solution for spreading control and monitoring. The EPOS family of control units is the result of the knowledge and experience gathered in the quarter of century in over 40 markets where RASCO operates. The result is intuitive control units, easy to use, designed for controlling the spreader without taking your eyes off the road.   SOLID C spreaders can be controlled with EPOS 10 and EPOS 30 control units. EPOS 10 enables control of all spreader functions, and EPOS 30 adds the option of wireless connectivity, GPS automatic sprinkling, navigation, and front and side snow plough control. The high reliability of compliance with the set parameters is achieved by using the system of feedback connections with the spreader’s actuators, and the sim

ALL INFORMATION IN REAL TIME

ARMS is an information and communication system for control, central monitoring, reporting and optimization of activities related to the maintenance of traffic infrastructure. Monitoring of working hours of people and machines as well as of the used resources (such as the used spreading salt, vehicle fuel etc.) in real time creates a unique possibility to quickly decide on potential saving methods. Unchangeable logs protect the user from liability by providing clear information on any taken action, while the reduced consumption of spreading material at the same time protects traffic infrastructure and its surroundings.

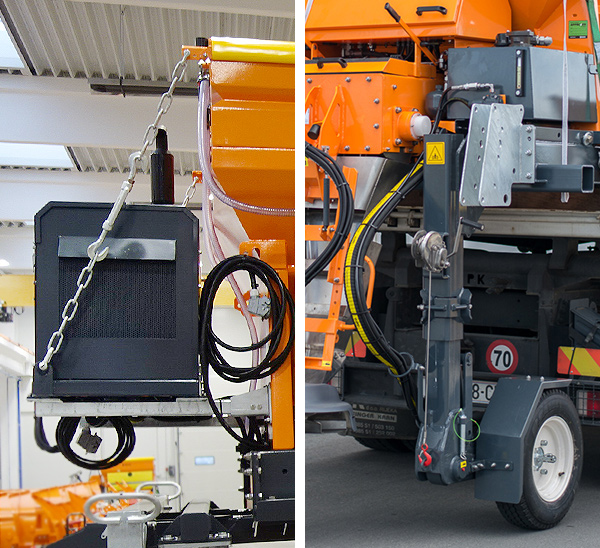

SPREADER DRIVE

It can be carried out through built in vehicle hydraulics or a diesel hydraulic power unit mounted on the spreader, or with the fifth wheel.
