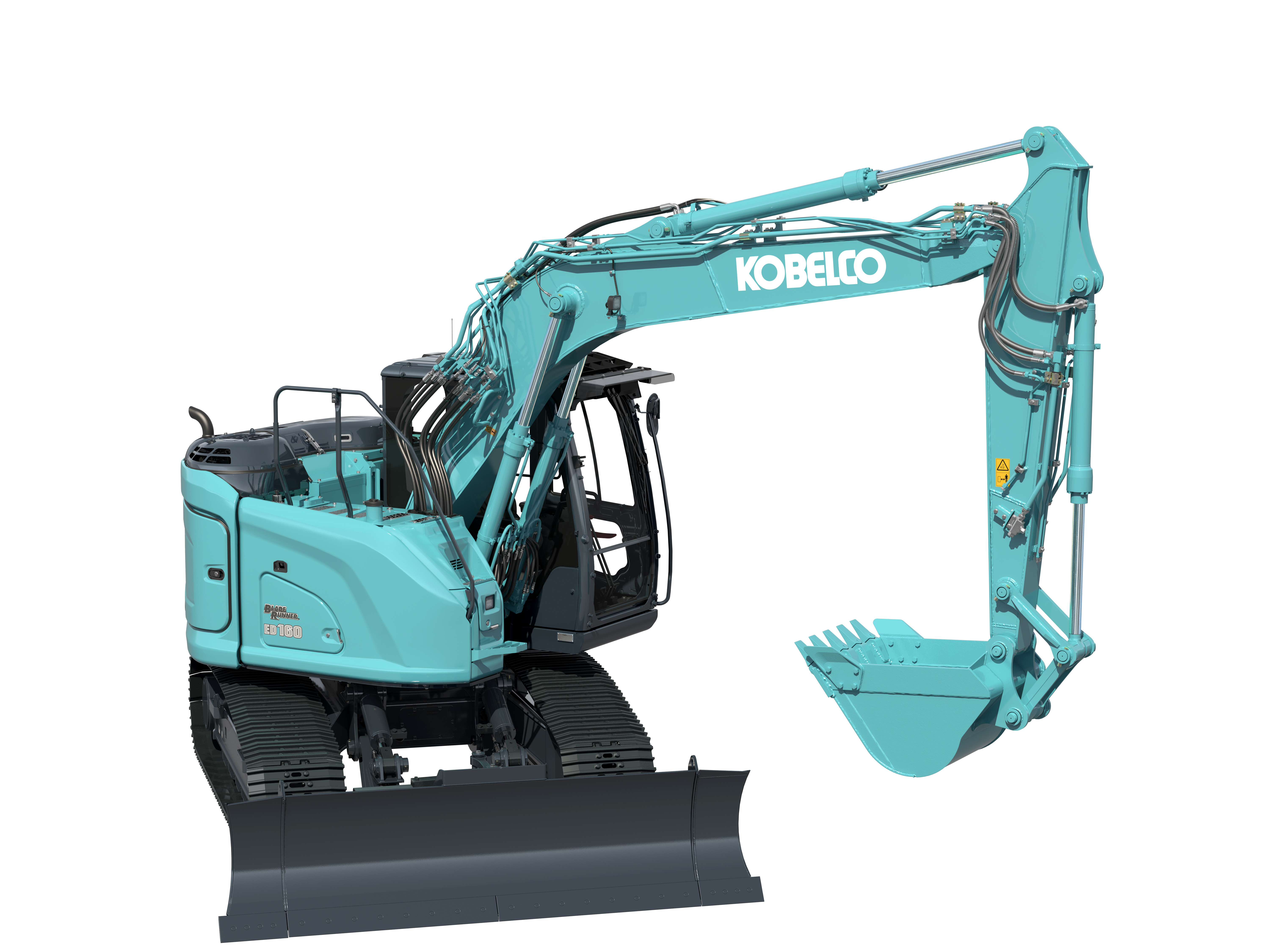

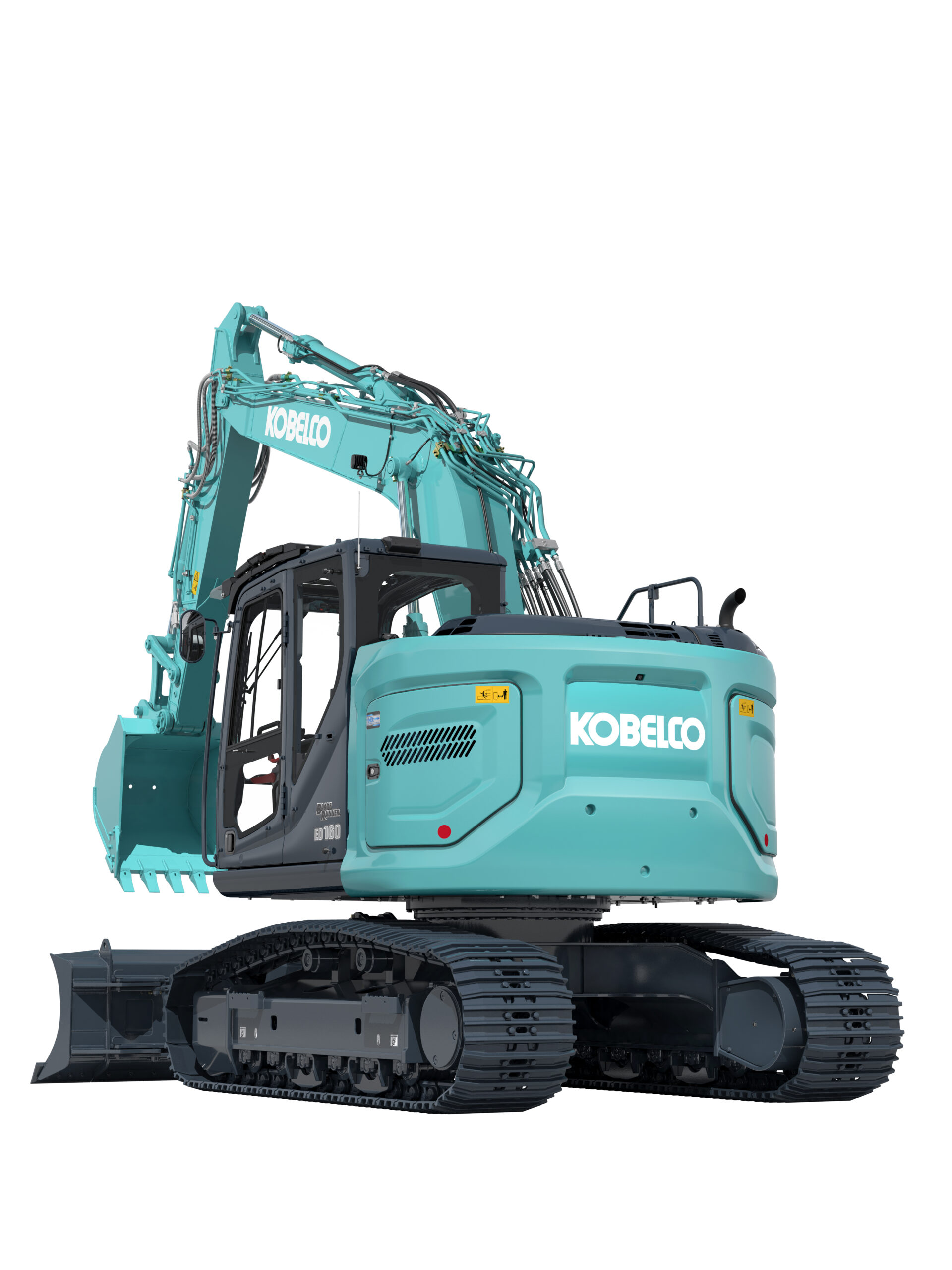

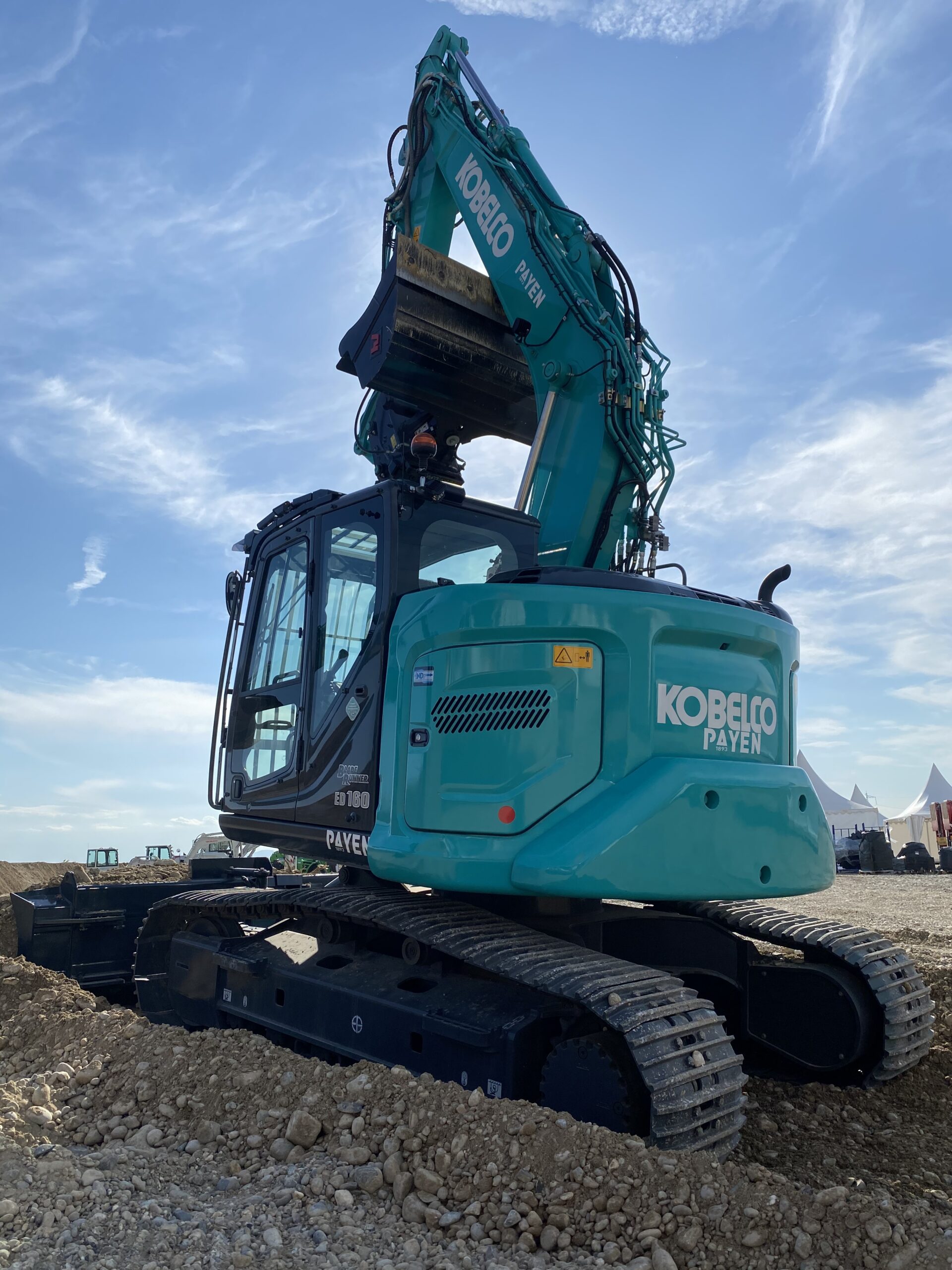

ED160-7 Blade Runner

ISUZU MOTORS LIMITED 4JJ1XDDV A01

Type:Four-cycle, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation

Fuel tank:190 L

Displacement:2.999 L

Rated power output:86 kW (117 hp) /2,200 min-1 (ISO14396)

Bucket digging force (Standard):105.4 kN

Arm crowding force (Standard):64 kN

Arm crowding force (Long):58 kN

Standard arm:2.38 m

Long arm:2.84 m

Type:Two variable displacement piston pumps + extra gear pump

Max. discharge flow:2 x 142 L/min 1 x 66 L/min (extra)

Relief Valve Setting:34.3 MPa (Boom, arm and bucket)

Hydraulic fuel tank:89.9 L tank oil level, 190 L hydraulic system

Travel motors:Variable displacement piston, two-speed motors

Travel shoes:40 each side

Travel speed:2.4/4.8 km/h

Drawbar pulling force:195 kN (SAE)

Gradeability:70% {35°}
